Dimmable / Auto On-Off LED Panel

DIMMABLE / AUTO ON-OFF LED PANEL

Smart Recessed Ceiling Panel | Square & Round | Dimmable

Sleek, intelligent recessed lighting delivering perfect ambience and precision control — engineered for modern offices, clean rooms, and commercial spaces.

Key Features:

Product Models

Model	Wattage	Shape	Cutout Size	Product Code
Dimmable LED Panel Square	20W	Square	200×200 mm	SML-20W-SQ-LPD
Dimmable LED Panel Square	16W	Square	150×150 mm	SML-16W-SQ-LPD
Dimmable LED Panel Square	12W	Square	100×100 mm	SML-12W-SQ-LPD
Dimmable LED Panel Square	20W	Round	200 mm	SML-20W-RO-LPD
Dimmable LED Panel Square	16W	Round	150 mm	SML-16W-RO-LPD
Dimmable LED Panel Square	12W	Round	200 mm	SML-12W-RO-LPD

Sensor Variant Guide

Wattage	Shape	Cutout	Best Application
12W	Square / Round	100×100 / 200mm	Cabins, Corridors, Counters
16W	Square / Round	150×150 / 150mm	Offices, Meeting Rooms, Retail
20W	Square / Round	200×200 / 200mm	Showrooms, Labs, Workstations

Product Benefits

Full 0–100% dimming capability

allows precise control of light intensity — creating the ideal ambience for every task, time of day, and occupancy level while delivering up to 70% energy savings over conventional downlights.

Multiple wattage and shape combinations

provide complete design flexibility — one product family covers every recessed lighting requirement from compact cabin downlights to large showroom ceiling panels.

delivers a clean, premium ceiling aesthetic with soft, flicker-free, glare-free illumination — enhancing workspace comfort, productivity, and visual appeal.

Technical Specifications

Parameter	Specification
Wattage	12W / 16W / 20W
Input Voltage	85V – 265V AC
Power Factor	≥ 0.95
Colour Temperature	6500K
Lumen Efficacy	≥ 100 Lm/W
Total Lumen Output	1,200 Lm / 1,600 Lm / 2,000 Lm
CRI	≥ 80 Ra
IP Rating	IP20
Body Material	Aluminium + PC Diffuser

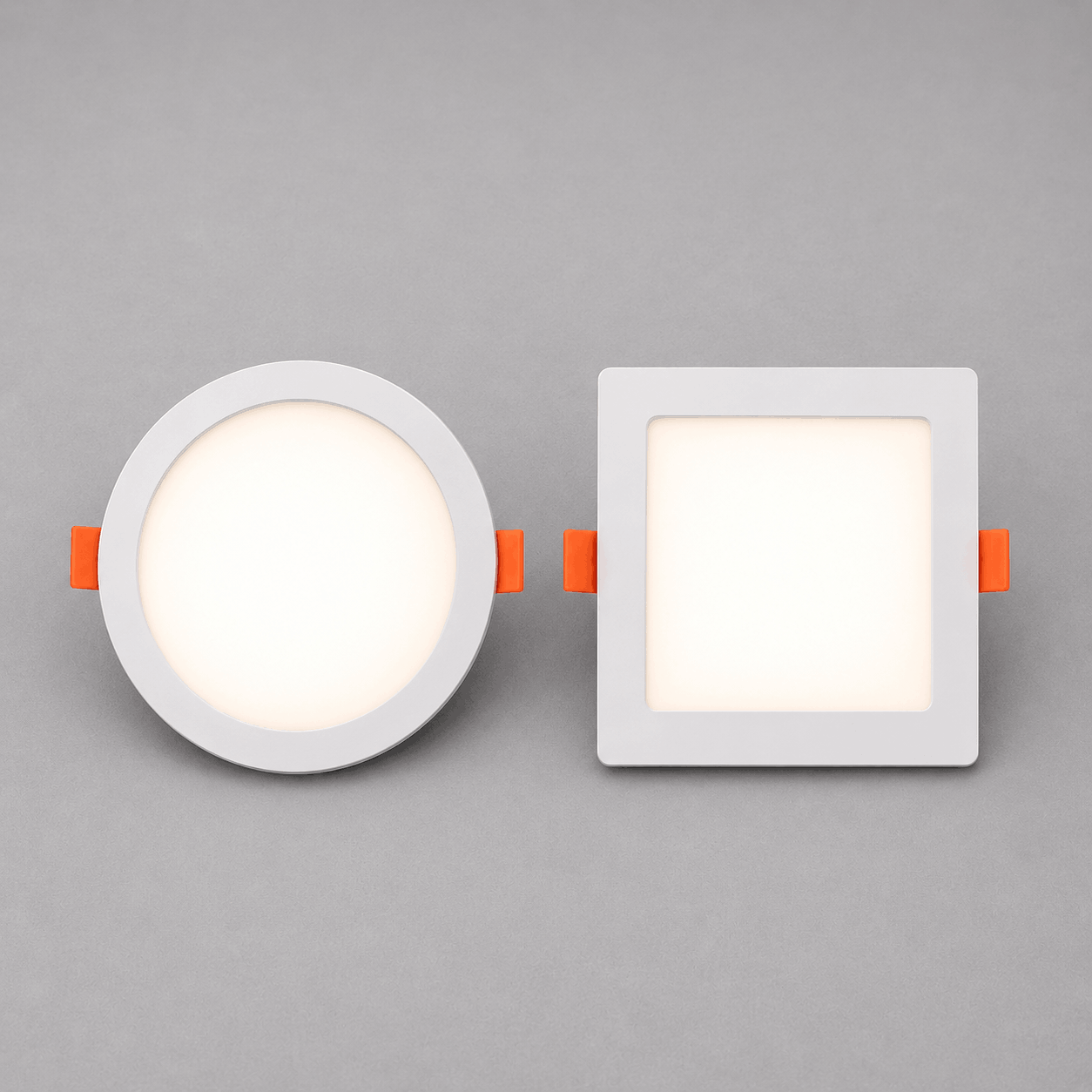

Shape	Square / Round
Beam Angle	120°
Mounting Type	Recessed Ceiling
Operating Temperature	–15°C to +45°C
Lifespan	50,000+ Hours
Warranty	2 Years
