50,000+ Hours
Ideal for precision and inspection environments
Mounted
6500K
| Model | Wattage | Size | Sensor Type | Product Code |
|---|---|---|---|---|
| Dimmable Panel — Motion Sensor | 40W | 2×2 | Motion | SML-22-40W-LPD-65M |
| Dimmable Panel — Presence Sensor | 40W | 2×2 | Presence | SML-22-40W-LPD-65M |
| Auto ON/OFF Panel — Motion Sensor | 40W | 2×2 | Motion | SML-22-40W-LPOF-65M |
| Auto ON/OFF Panel — Presence Sensor | 40W | 2×2 | Presence | SML-22-40W-LPOF-65P |
| Variant | Best For | Key Advantage |
|---|---|---|
| Dimmable + Motion Sensor | Offices & Meeting Rooms | Dim to preset level + auto OFF |
| Dimmable + Presence Sensor | Labs & Clean Rooms | Detects stationary occupants |
| Auto ON/OFF + Motion Sensor | Corridors & Utility Areas | Full ON/OFF automation |
| Auto ON/OFF + Presence Sensor | Cabins & Workstations | No missed detection |
the panel automatically responds to human presence, eliminating energy waste in partially or unoccupied spaces throughout the working day.
PIR motion sensors suit high-traffic areas while microwave presence sensors detect even stationary occupants in cabins, labs, and workstat
| Parameter | Specification |
|---|---|
| Wattage | 40W / 80W |
| Input Voltage | 85V – 265V AC |
| Power Factor | ≥ 0.95 |
| Colour Temperature | 4000K / 6500K |
| Dim | 440w to 8w, 20w to 5wK |
| Lumen Efficacy | ≥ 110 Lm/W |
| CRI | ≥ 80 Ra |
| Body Material | Aluminium Anodised |
| Sensor Type | Dimmable or on/off |
| Detection Angle | 120° |
| Time Delay | 10-20 secs |
| Operating Temperature | –15°C to +50°C |
| Operating Temperature | –15°C to +50°C |
| Lifespan | 50,000+ Hours |
| Warranty | 2 Years |
Industrial Grade Illumination Solutions
Bright Spaces For Learning
Bright & Hygienic Workspaces
Efficient Lighting for Business
Bright Retail Space Illumination
Reliable Lighting for Care

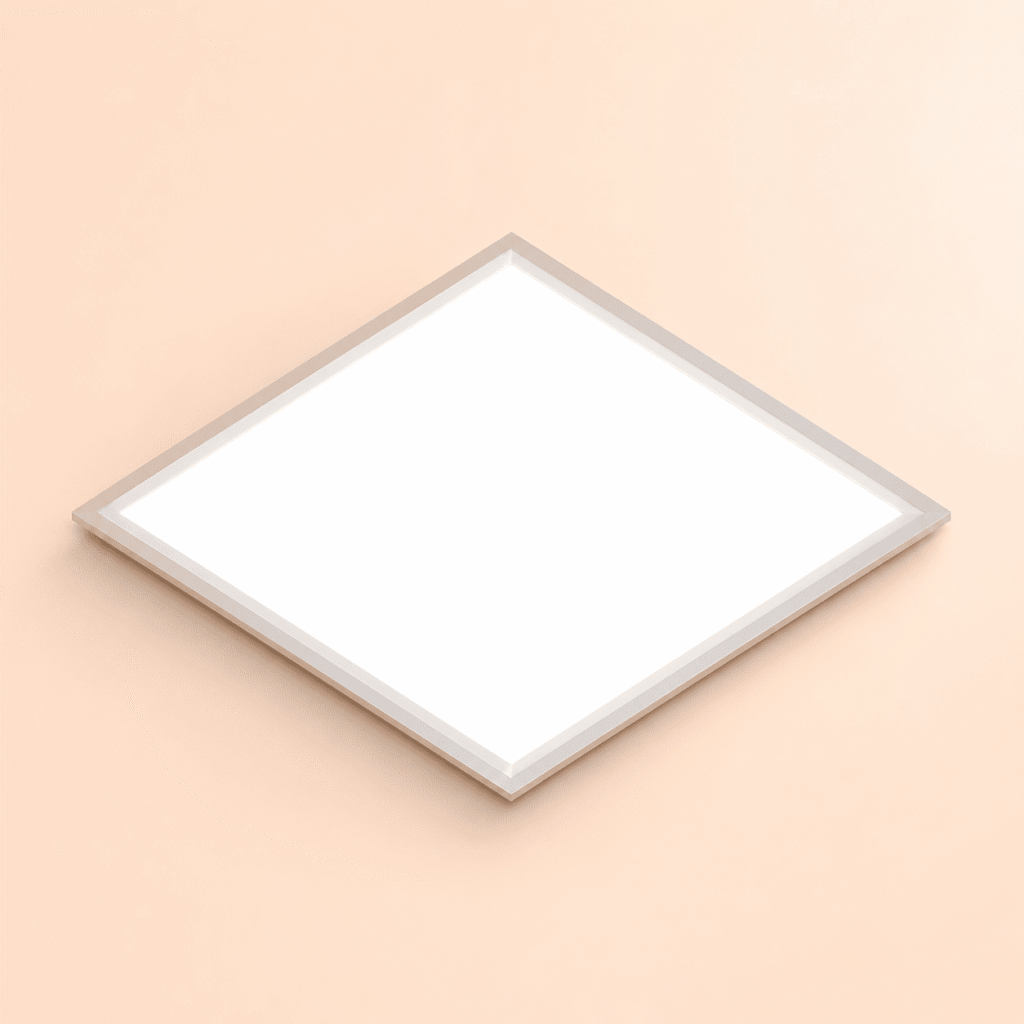

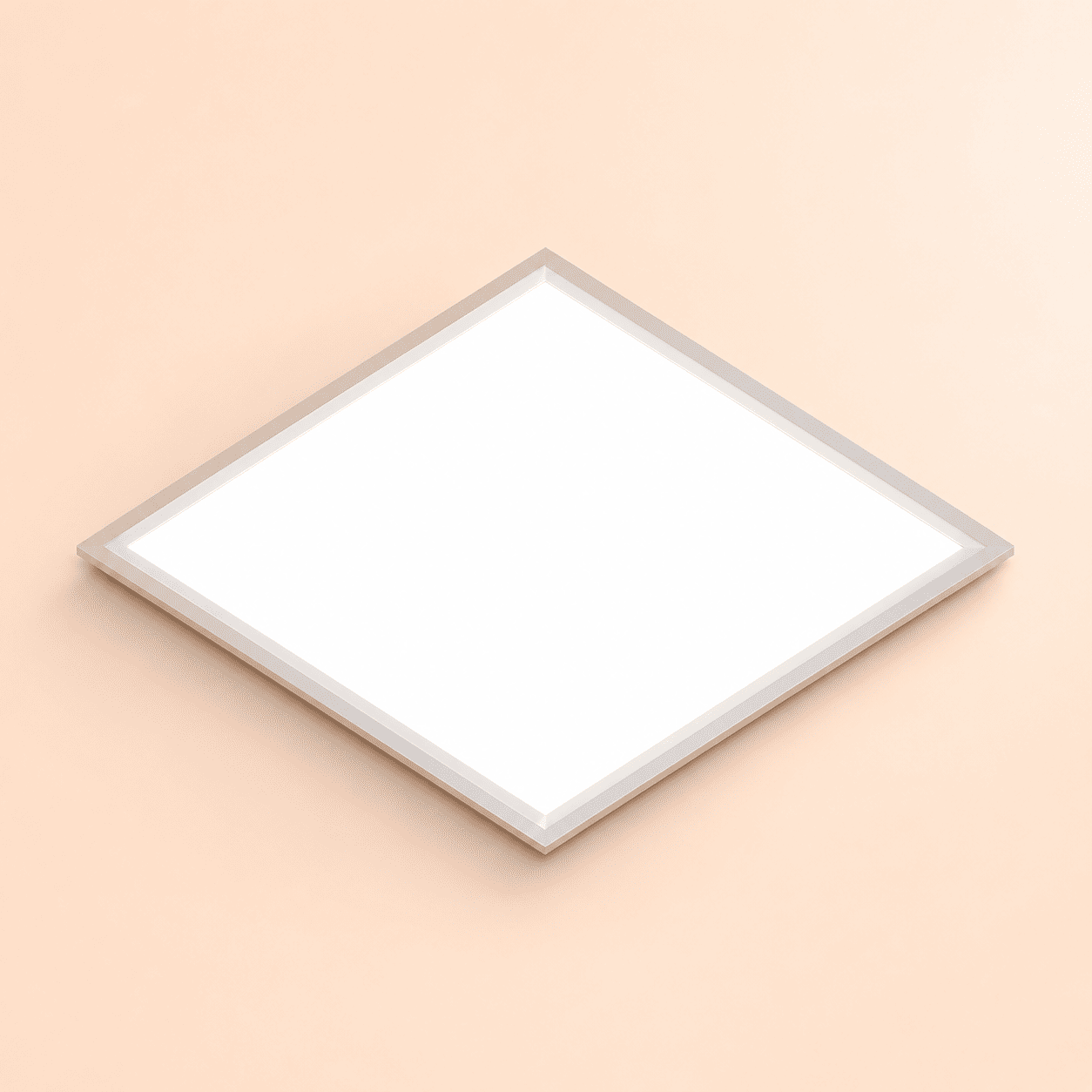

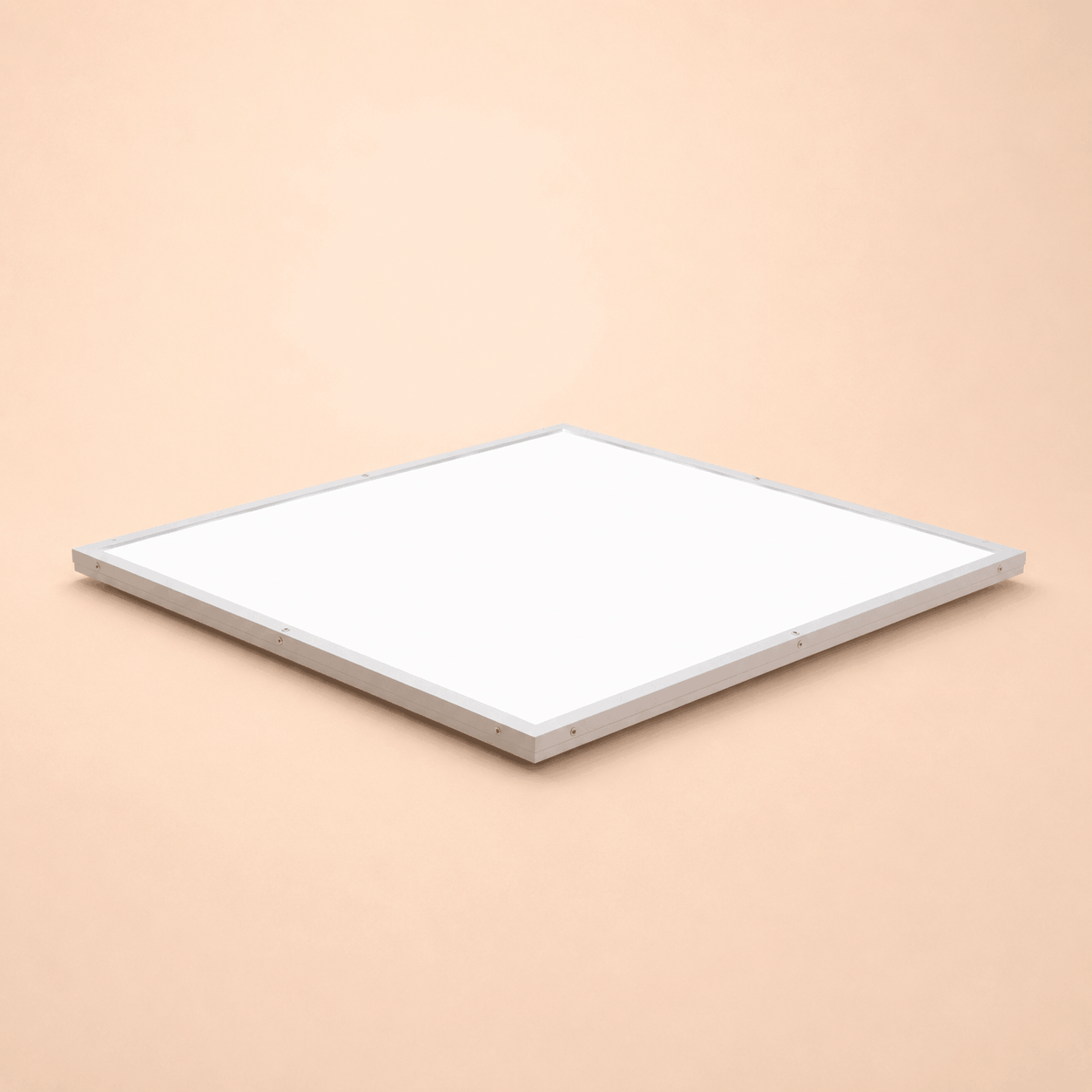

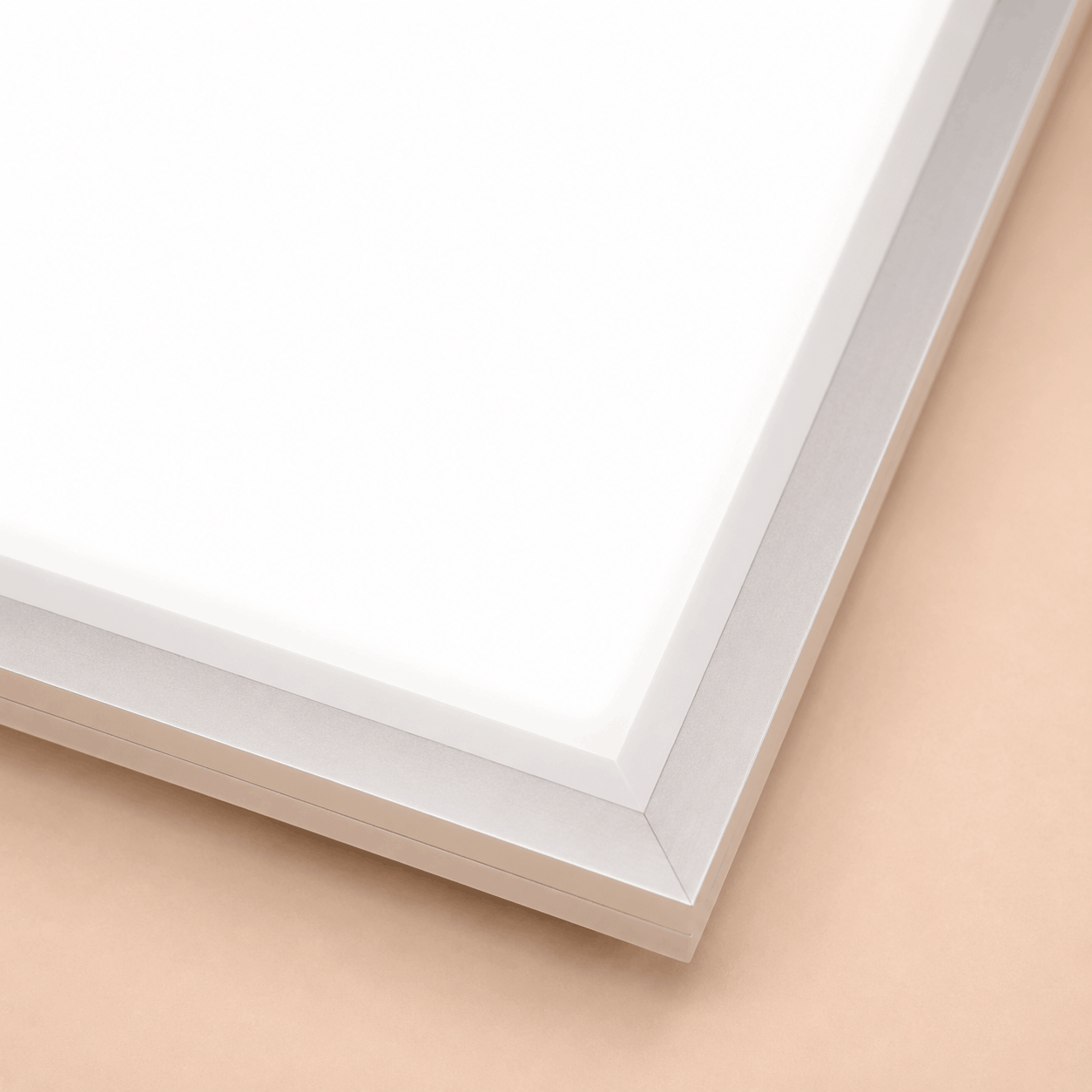

The SIMTOLITE Smart 2×2 LED Panel is the complete intelligent ceiling lighting solution — combining automated occupancy control, precision dimming, and superior light quality into one slim, energy-saving, industrial-grade panel.
